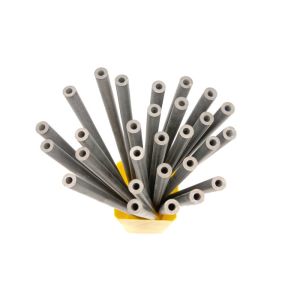

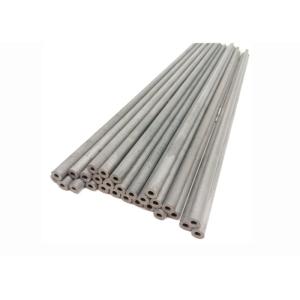

high hardness cemented carbide coolant rod with 0.2mm single hole
Products Description
1. We use 100%virgin material for manufacturing tungsten carbide
coolant rod
2. Based on different application, we have various grade for
choice: YL10.2/YG8/YG6/YG6X/K10/K20
3. Properties: Our products possess high hardness, wear/corrosion
resistance, good roughness,high performance
4. Dimension:dia4*dia0.2/0.3/0.4.....*length330mm. we can provide
various dimesion based on your application
5. Surface: blank or unground based on your requirement
6. We manufactured products with advanced equipment and perfect
quality control system
7. 100% inspection before shipment
8. We are real factory in Zhzuhou. Our quality is guaranteed and
price is competitive.
Standard size list
| Detail size and blank tolerance |
| | |
| 2-3(0/+0.3) | 0.15/0.2/0.25/0.3/......1.1(+-0.05) | 30-340 |
ODxIDx330 | 4-6(0/+0.4) | 0.2/0.25/0.3/0.4..........4(+-0.05) | 30-340 |
| ODxIDx330 | 7-10(0/+0.5) | 0.2/0.25/0.3/0.4...........6(+-0.05) | 30-340 |
| ODxIDx330 | 11-20(0/+0.5) | 0.2/0.25/0.3/0.4........12(+-0.05) | 30-600 |
| ODxIDx330 | 22 | 6/8/10/12(+-0.2) | 100-600 |
| ODxIDx330 | 25 | 6/8/10/12(+-0.2) | 100-600 |
Some grade information for reference
Grade | Desity (g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain Size (μm) | Composition(%) | ISO |
YL10.2 | 14.4-14.6 | >92 | 4000 | 0.6-0.8 | 10%Co 90%WC | K25-K35 |
YG8 | 14.65-14.85 | >89.5 | 2320 | 0.8-1.2 | 8%Co 92%WC | K20 |
YG6 | 14.85-15 | >90 | 2150 | 0.8-1.2 | 6%Co 94%WC | K10 |
Other grade and dimension are also available for choosing based
your specific application
other Carbide rod type:
For tungsten carbide rod,we can make various type: solid carbide
rod, grinding carbide rod, blank carbide rod, carbide rod with
chamfer, carbide rod with single hole, custom carbide rod also
available
Application Area:
As tungsten carbide have good material properties, it is widely
used in varous industries:Paper, packaging, printing, non-ferrous
metal processing industry,Mechanical, chemical, petroleum,
metallurgy, electronic and natioanl defense industries.
Production Process:
tungsten carbide rods process, to ensure high quality, we commit
our customers that:
1. All materials are tested in terms of purity ,density, hardness
and T.R.S before use.
2. Every piece of product is inspected before shipment
If you are interested in us, warmly welcome to contact or visit us
at any time
